The word "luxury" is mainly reflected in its incredibly realistic visual effect. It's not just simple flat printing; it uses high-precision replication technology to faithfully reproduce the wood's texture, color, natural knots, and even its three-dimensional feel. Combined with surface treatments such as matte, semi-gloss, or embossed/textured, its texture is comparable to real wood.

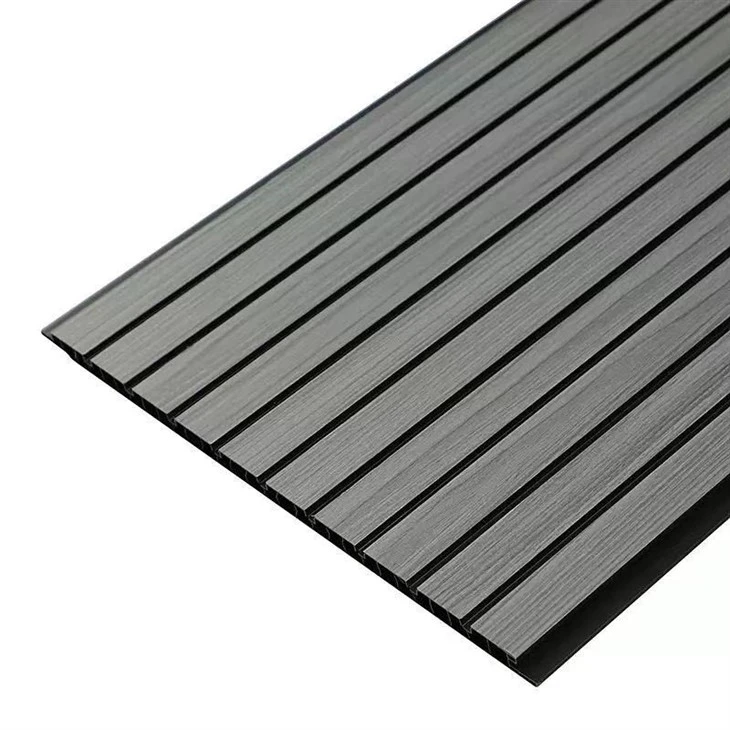

| Product Name | Luxury wood grain pvc wall panel |
| Brand | PANSEN |
| Standard Size | 300*8/8.5/9*2900m |
| Material | 30-80% PVC + Calcium Carbonate + Other Additives |
| Features: | Wear-resistant, waterproof and fire-proof, environmentally friendly, beautiful and easy to install, UV protection, etc. |
| Color | Color book or customized |
| Fire Rating | B1 |
| Installation Type | Very easy install with accessories |
| Types | Printing / Hot Stamping/ Lamination |
| Transport Package | PE film (standard) / Carton (yellow/white), 10 PCS/Carton |
| Application: | Buildings, stations, hotels, offices, factories, shopping malls, schools, gymnasiums, hospitals, etc. |
| Payment | 30% deposited the rest should be paid before delivery |
| MOQ: | 80–100 pcs/color (mixed with other items) or 1×20'FT container |
Color choose as below:
Gilded Marble1
Gilded Marble2
Gilded Marble3
Golden Cherry
pear wood
sandalwood
Detailed Installation Steps
Tools and Materials Preparation
Tools: Measuring tape, level, pencil, utility knife or fine-toothed saw, electric drill (for installing the keel).
Materials: Wall panels, special PVC adhesive, anti-mildew sealant (silicone glue), edge trimming strips (for external and internal corners, end caps, etc.). If using a keel frame, timber or special keel is also required.
Wall Surface Preparation and Planning
Clean the wall: Ensure the wall is clean, dry, free of oil and dust, and remove any loose old coating.
Check flatness: Use a long straightedge against the wall. Large gaps indicate an uneven wall; a keel frame solution is recommended.
Plan the layout: Measure the wall dimensions, calculate the required number of wall panels, plan where to begin installation, and consider the edge trimming locations.
Plate Adaptation (Important): Before installation, lay the wall panels flat in the room for at least 24 hours to allow them to acclimate to the room's temperature and humidity, preventing deformation due to thermal expansion and contraction.
Cutting Wall Panels
Cut the wall panels according to the measured dimensions.
When cutting, take care to protect the decorative surface. When using a handsaw, keep the decorative surface facing up; when using a jigsaw, keep the decorative surface facing down.
Formal Installation
Direct Adhesion: Apply a bead of adhesive to the back of the wall panel, about 5 cm from the edge, then apply several more coats of adhesive, spaced about 45 cm apart. Press the wall panel firmly against the wall, ensuring complete contact.
Frame Installation: First, install the wooden frame on the wall, with vertical studs spaced no more than 40 cm apart. Then apply adhesive to the studs and secure the wall panels in place.
PVC fluted panel FAQ
Q: What should I do if there are scratches or bumps on the surface?
A:Deeper scratches or dents may leave marks even after repair. Avoid scratching with hard objects during daily use, especially when moving furniture.
Q: Can it be used in humid environments (such as bathrooms)?
A:Yes. PVC material is waterproof, moisture-proof, and mildew-proof, making it ideal for use in damp environments such as bathrooms and balconies.
Q: Won't the gold color be too flashy? Will it make the overall look cheap?
A: This depends on the surface finish. An overly glossy surface may appear "plastic" or produce glaring reflections under strong light. It is recommended to choose a matte or satin gold finish, which looks more sophisticated and understated.
Q: Will a small room feel cramped?
A: On the contrary, vertical grooves can visually elongate a space, making a room appear taller and more open. This is one of its major advantages.
Q: How should the pipelines behind it be handled?
A: This is the product's "hidden feature." Before installation, electrical wires, network cables, and other devices such as TV cables and routers can be pre-installed using the space behind the panel, making the wall look very clean.
